Features

TVI/AHD/CVI/CVBS/IPCfive-in-one function, multi-mode input, support HD analog video encoding, support HD analog + HD network video input, support pure HD network video input.
Easily implement network penetration through cloud services and remote monitoring in one step.
Supports various mobile phone monitoring (iPhone/Android).
Support multiple web browsers(IE/Chrome/Firefox/Safari).
Support VGA, TV, HDMI output at the same time.
Powerful network services (supporting DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, Email, etc.), complete supporting facilities (WEB, client, SDK), easily achieve interconnection and interoperability.
Supports more than 20 languages and breaks the limits of national borders.
Freely change the startup interface and choose the interface style.
Support facehuman vehicle detection functions.
Support STVI function.
Support coaxial audio.
Support TS Cloud cloud platform customization.
Support snapshot.

Technical parameters

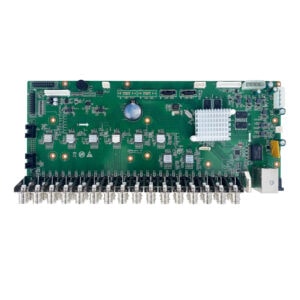

	Model	TVBXVR5232-4K
system	Master chip	SSR528
	AD chip	TP2830
	RAM	16G
	Compression format	H.265、H.265+
	operating system	Linux
video	Input	32
	Preview	32*5MN@12fps
	Coding	32*5MN@6fps
	Decoding	16*5MN@6fps
	Channel mode	Support analog, digital, mixed channel modes
	VGA output	1080P
	BNC output	support
	HDMI output	1080p, 4k
Audio	Audio Input	16(expandable)
	Audio output	1
	Coaxial audio	32
Record	Real-time video channels	32-way non-real-time
	Video mode	Timing, manual, motion detection, external alarm
Playback	Simultaneous playback	16
	Search mode	Point-in-time search, calendar search, event search, channel search
Backup	USB mobile hard disk, U disk	support
	USB DVD burner	support
	Format	H26X、AVI
remote access	Browser	Supports multiple web browsers
	Client	Support VMS
	APP	Support for iPhone, Android
Alarm	Alarm input	8(expandable)
	Alarm Output	2(expandable)
storage	HDD number	4
	E-SATA	not support
PTZ	Interface	1*RS485(expandable)
	protocol	PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO,DSCP,VISCA,SAMSUNG,RM110,HY
	control method	Pan, Tilt, Zoom, Preset, Cruise, Trace
Network	Network port	10/100/1000Mbps(RJ-45)
	Network protocol	TCP/IP, DHCP, DDNS, NTP, SMTP
other	remote control	support
	power supply	DC12V/5A
	Work Temperature	-10℃~60℃
	Working humidity	10%~90% Humidity
