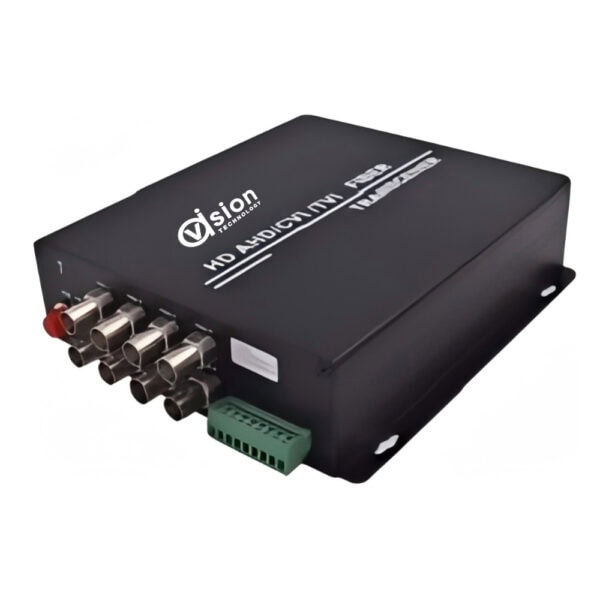

Video Interface Parameters

• Number of Channels: 8 – channel video.
• Signal Format: PAL/NTSC/SECAM.
• Nominal Input/Output Level: 1Vp – p.
• Nominal Input/Output Impedance: 75Ω.
• Video Bandwidth: 8MHz.
• Sampling Frequency: 13.5MHz.
• Quantization Level: 10bit.
• Differential Gain: <1%.
• Differential Phase: <1°.
• Weighted Signal – to – Noise Ratio: >69dB.

Data Interface Parameters

• Physical Interface: RJ45; industrial – standard terminal block.
• Data Type: RS485 (usually), and other types like RS422/RS232 may be supported optionally.
• Supported Rate: 0 – 200Kbps.
• Bit Error Rate: <10 – 9.

Optical Fiber Interface Parameters

• Optical Interface: FC/ST/SC, with FC as the default.
• Wavelength: 1310/1550nm.
• Transmission Distance: 20km (single – mode fiber).
• Output Power: – 3 – – 10dBm.
• Receiver Sensitivity: – 25dBm.

General Parameters

• Power Supply: 5V 2A.
• Power Consumption: ≤7W.
• Operating Temperature: – 30℃ – +75℃.
• Storage Temperature: – 40℃ – +85℃.
• Relative Humidity: 0 – 95% (non – condensing).
• MTBF: ≥100,000 hours.
