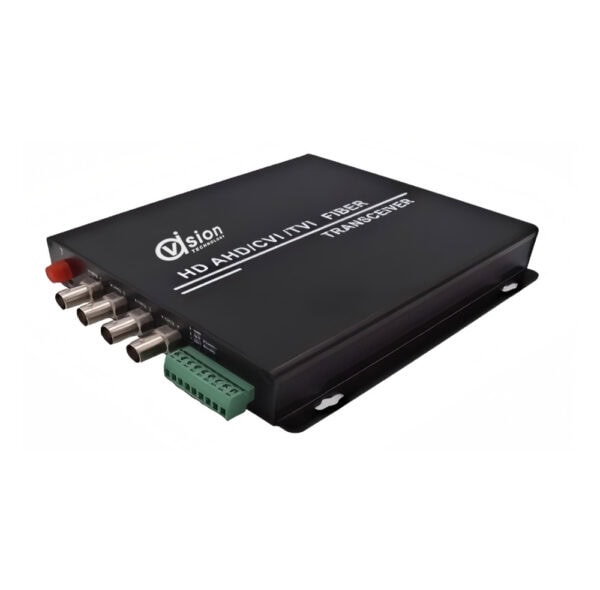

Video Interface Parameters

• Interface Number: 4 – channel video.
• Signal Format: PAL/NTSC/SECAM.
• Nominal Input/Output Level: 1Vp – p.
• Nominal Input/Output Impedance: 75Ω.
• Sampling Frequency: 13.5MHz.
• Quantization Level: 10bit.
• Differential Gain: <1%.
• Differential Phase: <1°.
• Weighted Signal – to – Noise Ratio: >67dB.

Data Interface Parameters

• Physical Interface: RJ45; industrial – standard terminal block.
• Data Type: RS485/RS422/RS232/Manchester.
• Supported Rate: 0 – 400Kbps.
• Bit Error Rate: <10 – 9.

Optical Fiber Interface Parameters

• Optical Interface: FC/ST is optional.
• Wavelength: Multi – mode: 850/1310μm; single – mode: 1310/1550μm.
• Transmission Distance: Multi – mode: 0 – 3KM; single – mode: 0 – 100KM.

General Parameters

• MTBF: ≥105 hours.
• Operating Temperature: – 30℃ – +75℃.
• Storage Temperature: – 40℃ – +85℃.
• Relative Humidity: 0 – 95% (non – condensing).
• Rated Power Supply Voltage: AC220V/50Hz.
