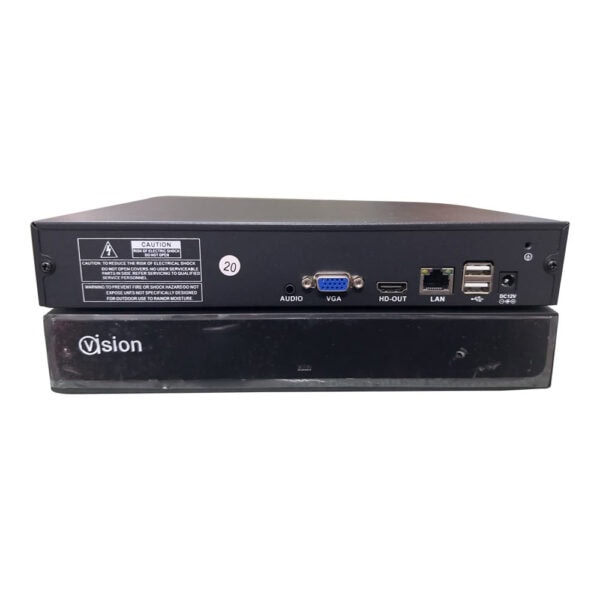

| Model | AVN16CH8P |
| Video input | 20 channels |
| Resolution | 12MP/8MP/5MP/3MP/2MP(1080P)/1.3MP(960P)/1.0MP(720P) |
| Bandwidth | 80MB |
| Compression | Audio:G.711U,G.711A; Video:H.265/H.264 |
| HDMI output | 1(3840*2160,2560*1440,1920*1080,1440*900,1280*1024,1280*720,1024*768) |
| VGA output | 1(1920*1080,1440*900,1280*1024,1280*720,1024*768) |
| Audio output | 1*HDMI,1*AUX(3.5mm) |
| Recording Resolution | 8channels 12MP/8MP,16channels 5MP,20channels 4MP/3MP/1080P/720P |
| Synchronous Playback | Instant Playback, Regular Playback, Intelligent Playback |
| Synchronous Playback | 1channel 12MP/8MP,4channels 4MP |
| Backup Mode | Regular Backup, Recording Clip Backup |
| HDD | 1 SATA HDD,up to 8TB |
| Ethernet | 1 RJ45 10M/100M Base-T |
| USB | 2 USB2.0 |
| Protocols | TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P |
| Input Voltage/Current | 12V/2A |
| Power consumption(excluding hard disk) | ≤3W |
| Temperature |  -10℃ ˜ +55℃ |
| Humidity | 10%˜ 90% |
| Dimension(W*D*H) | 122*72*20 |
