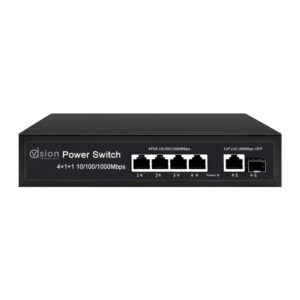

| Model | AVL2GS4&5FP&G | |
| Protocol | Standard | IEEE802.3 10Base-T
IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.1W Â Spanning Tree IEEE 802.3x flow control |
| Ethernet port
Characteristic |
Connector Type | 1×8 RJ45，1×2 RJ45 |
| Transmission rate | 10/100/1000Mbps auto-negotiate | |
| Transmission distance | 100Base-TX: ≤100m（CAT3,4,5 UTP）
1000Base-T: ≤100m（CAT3,4,5 UTP） |
|
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MACÂ address table | 2K | |
| Case space | 1Mb | |
| Jumbo frames | 9216b | |
| Packet Forwarding Rate | 14.88Mpps@64byte | |
| Bandwidth | 12G（non-blocking） | |
| LEDÂ indicator | Power indicator | Blue, PWR |
| Link/Act indicator | Blue, 1 for each ethernet port | |
| 1000M indicator | Blue, 1 for uplink port 5-6 | |
| PoE indicator | Blue, 1 for each poe port 1-4 | |
| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | Standby: ≤3W; whole: ≤65W | |
| PoEÂ pin | 1/2+,3/6- | |
| The port max rate | ≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |
| Physical properties | Size | 201×118×44mm |
| Weight | Net weight:0.7kg,Gross weight: 7.5kg | |
